Substrate materials play a crucial role in the fabrication of semiconductors and electronic devices. These substrates can be broadly classified into three types based on their internal structure: single crystal, polycrystalline, and amorphous. Each type has distinct physical characteristics, manufacturing processes, and application areas. This article will provide a detailed analysis of these substrate materials, highlighting their unique properties, advantages, and disadvantages, and exploring their practical applications.

1. Single Crystal Substrates

Structure and Characteristics

Single crystal substrates are characterized by a highly ordered atomic lattice structure, where the entire substrate forms a continuous and uninterrupted crystal lattice. This perfect crystalline structure results in minimal defects and the absence of grain boundaries, which is crucial for the optimal performance of electronic devices.

Manufacturing Methods

The primary methods for producing single crystal substrates are the Czochralski (CZ) process and the Float Zone (FZ) method. The CZ process involves dipping a seed crystal into molten material and slowly pulling and rotating it to grow the single crystal. This technique is widely used for producing silicon crystals. The FZ method purifies and grows single crystals by moving a molten zone along a polycrystalline rod, suitable for producing high-purity silicon crystals.

Application Areas

Single crystal substrates are extensively used in high-performance and precision-demanding semiconductor devices. Integrated circuits (ICs) and high-frequency devices commonly use single crystal silicon substrates due to their superior electron mobility and minimal defect density. Additionally, optoelectronic devices such as LEDs and lasers often utilize single crystal gallium arsenide (GaAs) or silicon carbide (SiC) substrates to achieve excellent photoelectric conversion efficiency and thermal stability.

Advantages and Disadvantages

The main advantages of single crystal substrates include their high performance and excellent stability. The perfect lattice structure significantly enhances electron mobility and device reliability. However, the manufacturing process for single crystal substrates is complex and costly, particularly for large-sized crystals, which limits their widespread adoption in some applications.

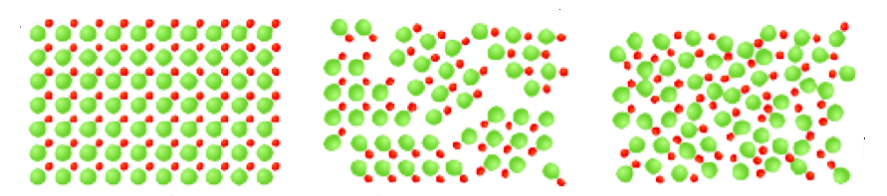

                       （Single Crystal Substrates ）          （Polycrystalline Substrates）               （Amorphous Substrates）

2. Polycrystalline Substrates

Structure and Characteristics

Polycrystalline substrates consist of numerous grains, each with different orientations. While the atomic arrangement within each grain is ordered, grain boundaries exist between these grains. These boundaries can affect the material's electronic and optical properties, often leading to lower performance compared to single crystal materials.

Manufacturing Methods

Polycrystalline materials are commonly produced through casting or physical vapor deposition (PVD). Casting involves cooling molten material to form a polycrystalline structure with multiple grains. PVD techniques deposit thin films on substrates to form polycrystalline structures. These methods are generally simpler and more cost-effective than single crystal growth technologies.

Application Areas

Polycrystalline substrates are primarily used in cost-sensitive applications such as solar cells. Although polycrystalline silicon solar cells typically have lower efficiency than their single crystal counterparts, their lower manufacturing cost makes them suitable for large-scale commercial use. Polycrystalline materials are also widely used in thin-film transistors (TFTs) and display technologies.

Advantages and Disadvantages

Polycrystalline substrates offer lower manufacturing costs and greater ease in producing large-sized materials, providing economic advantages for many applications. However, the presence of grain boundaries can reduce electron mobility and cause material performance to be uneven, limiting their use in high-performance devices.

3. Amorphous Substrates

Structure and Characteristics

Amorphous substrates lack a long-range ordered lattice structure, resulting in a random atomic arrangement. This disordered structure leads to higher defect densities, which can negatively impact the material's electronic and optical properties.

Manufacturing Methods

Amorphous materials are typically produced by rapidly cooling molten material, preventing it from forming a crystalline structure. Sputtering deposition is another common method, where amorphous films are deposited onto substrates using sputtering techniques.

Application Areas

Amorphous materials are extensively used in low-cost and low-temperature processing applications. Amorphous silicon thin-film transistors (TFTs) are commonly used in liquid crystal displays (LCDs) and other display technologies. Additionally, due to their low-temperature processing capabilities and good mechanical flexibility, amorphous materials are suitable for flexible displays and other flexible electronics.

Advantages and Disadvantages

The primary advantages of amorphous materials are their simple and cost-effective manufacturing processes. They can be produced at relatively low temperatures, making them ideal for flexible electronics and cost-sensitive applications. However, their disordered internal structure results in lower electron mobility and less stability under high-temperature or prolonged operational conditions, which needs to be considered in their application.

Conclusion

Single crystal, polycrystalline, and amorphous substrates each have unique structural characteristics and application scenarios. Single crystal materials, with their high performance and stability, are suitable for high-end semiconductor and optoelectronic devices but are costly to produce. Polycrystalline materials offer cost and size advantages, making them ideal for solar cells and thin-film devices, despite their lower performance. Amorphous materials are favored for their low-cost and flexible applications, although they have limitations in high-performance devices. Selecting the appropriate substrate type depends on specific application requirements, performance needs, and manufacturing costs, aiming to achieve the best technical and economic benefits.
