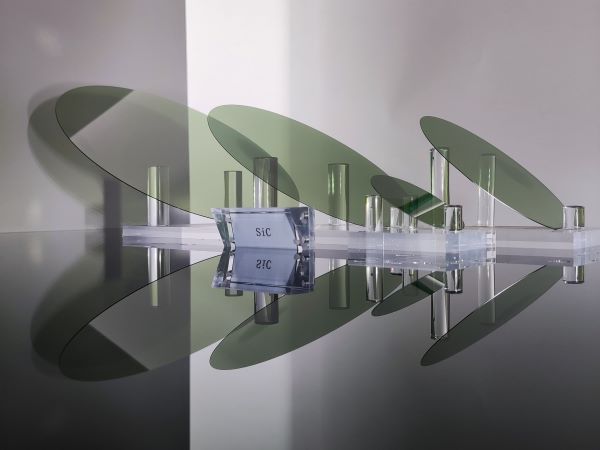

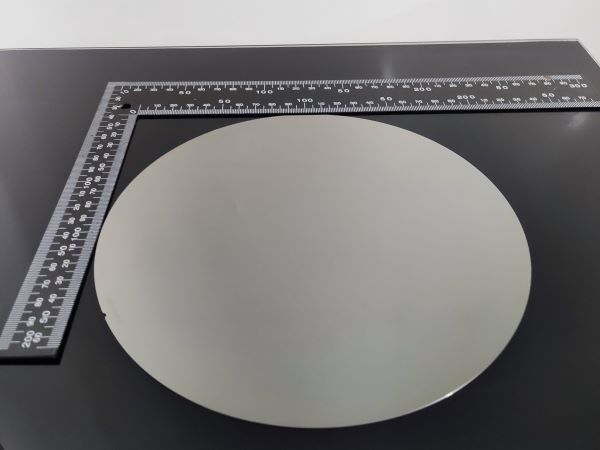

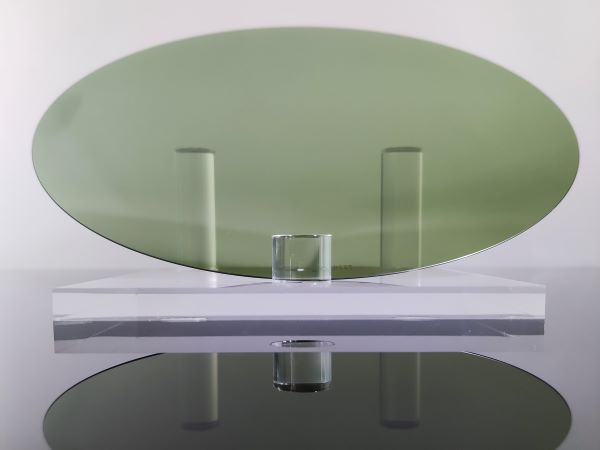

8 inch SiC Wafer (4H-N Type)

Specific Information
SiC power devices can effectively meet the requirements of high efficiency, miniaturization and light weight of power electronic systems with their excellent performance of high voltage resistance, high temperature resistance and low loss. It has obvious advantages in new energy vehicles, photovoltaic power generation,rail transit, smart grid, industral power and other fields. With the development of new energy vehicles, the demand for Silicon Carbide Wafer is increasing day by day. As one of the largest sic wafer manufacturers, JXT provides the highest quality Silicon Carbide Wafers.
ORDER FROM EBAY Get a free quote
  • specification
  • Properties
  • Item4H n-type SiC substrate(2~8inch)
    Diameter50.8±0.3mm76.2±0.3mm100.0±0.3mm150.0±0.5mm200.0±0.5mm
    Thickness350±25μm350±25μm350±25μm350±25μm500±25μm
    Surface OrientationOff-Axis:4°toward <11-20>±0.5°
    Primary Flat OrientationParallel to <11-20>±1°<1-100>±1°
    Primary Flat Length16.0±1.5mm22.0±1.5mm32.5±2.0mm47.5±2.0mmNotch
    Secondary Flat OrientationSilicon face up: 90° CW. from Primary flat±5.0°N/AN/A
    Secondary Flat Length8.0±1.5mm11.0±1.5mm18.0±2.0mmN/AN/A
    Resistivity0.014~0.028Ω•cm
    Front Surface FinishSi-Face: CMP, Ra<0.5nm
    Back Surface FinishC-Face: Optical Polish, Ra<1.0nm
    Laser MarkBack side: C-Face
    TTV≤10μm≤15μm≤15μm≤15μm≤20μm
    BOW≤25μm≤25μm≤30μm≤40μm≤60μm
    WARP≤30μm≤35μm≤40μm≤60μm≤80μm
    Edge Exclusion≤3 mm


    Customization specifications:

    * Various sizes and shapes such as 10*10mm

    * Various thicknesses:0.1~20mm

    * Various orientations such as Off-Axis:8°toward <11-20>±0.5°

    * Various surface roughness such as slicing,lapping,polishing.

    * Silicon carbide crystal ingots are available.


  • Silicon carbide substrates(SiC) are the third-generation semiconductor materials and belong to Wide Band Gap Semiconductors. Silicon carbide(SiC) is a group IV-IV compound semiconductor material formed by C and Si elements in a ratio of 1:1 and has the characteristics of high temperature resistance, high critical breakdown electric field, high electron saturation migration rate and high thermal conductivity. Compared with silicon-based power devices, Silicon carbide devices will greatly improve the energy conversion efficiency because of its high voltage, high temperature and low loss. It will be one of the most basic and widely used materials for making semiconductor chips in the future.


    Crystal StructureHexagonal
    Lattice Constant(nm)a=3.076Å c=10.053Å
    Density(g/cm3)3.21
    Melting point(℃)2830
    Mohs Hardness(mohs)9.2
    Dielectric Constant9.66
    Band Gap(eV)3.26
    Breakdown Electrical Field (MV/cm)3.1
    Thermal Conductivity(W/cm.K)4.5
    Thermal Expansion 4.7*10-6/k
    Refractive Index 2.6767~2.6480
